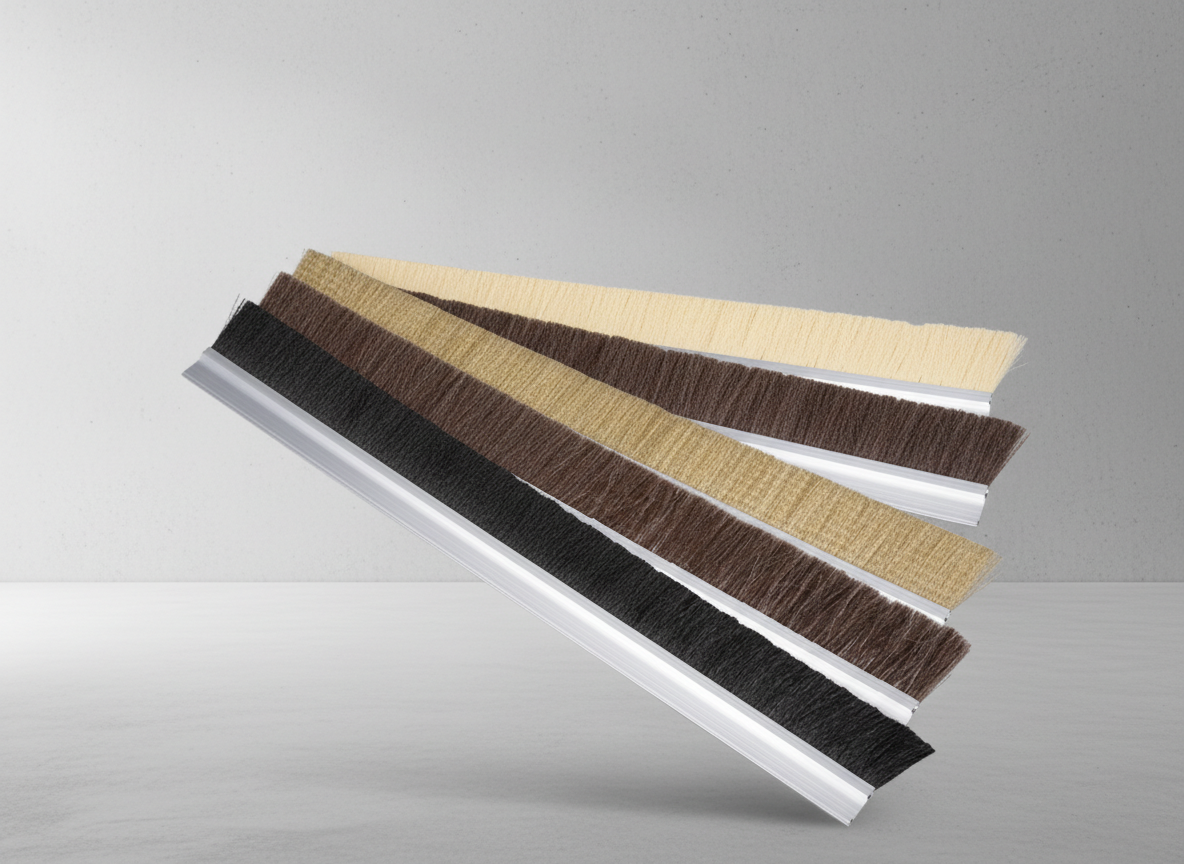

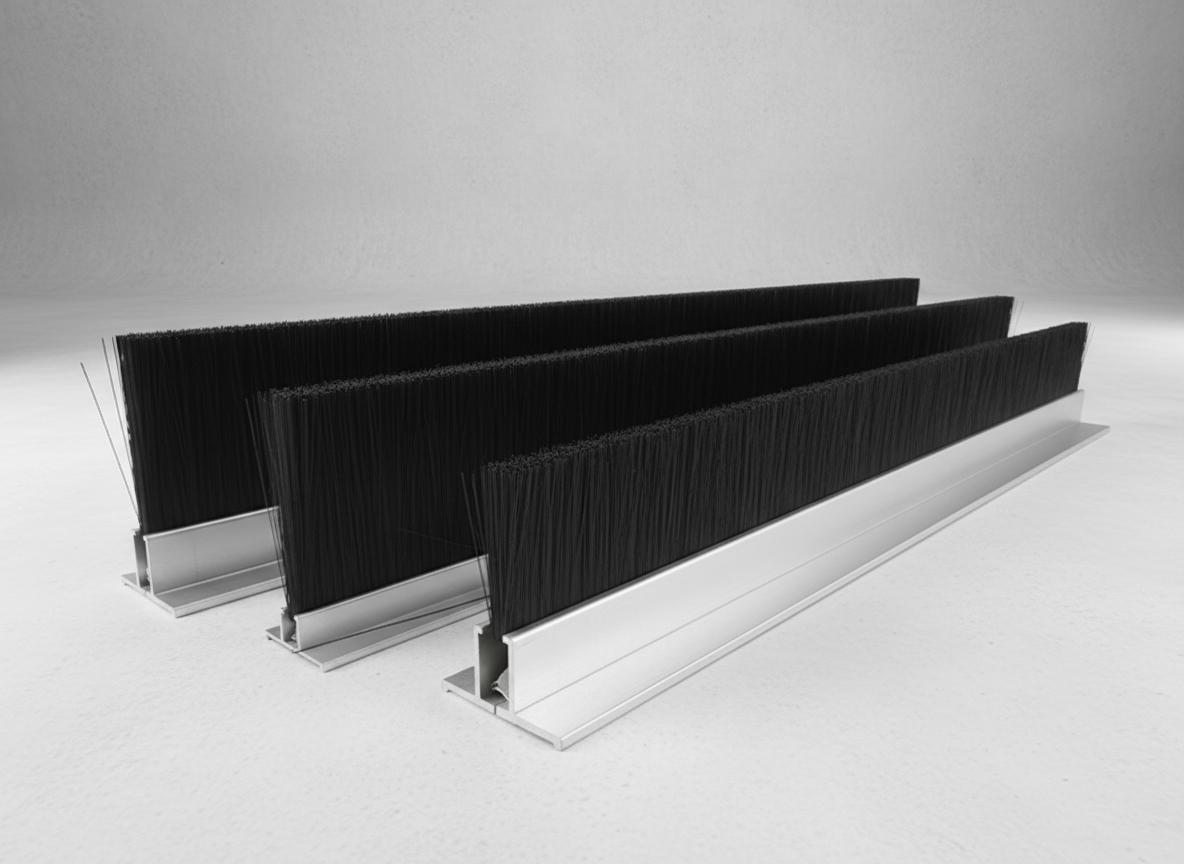

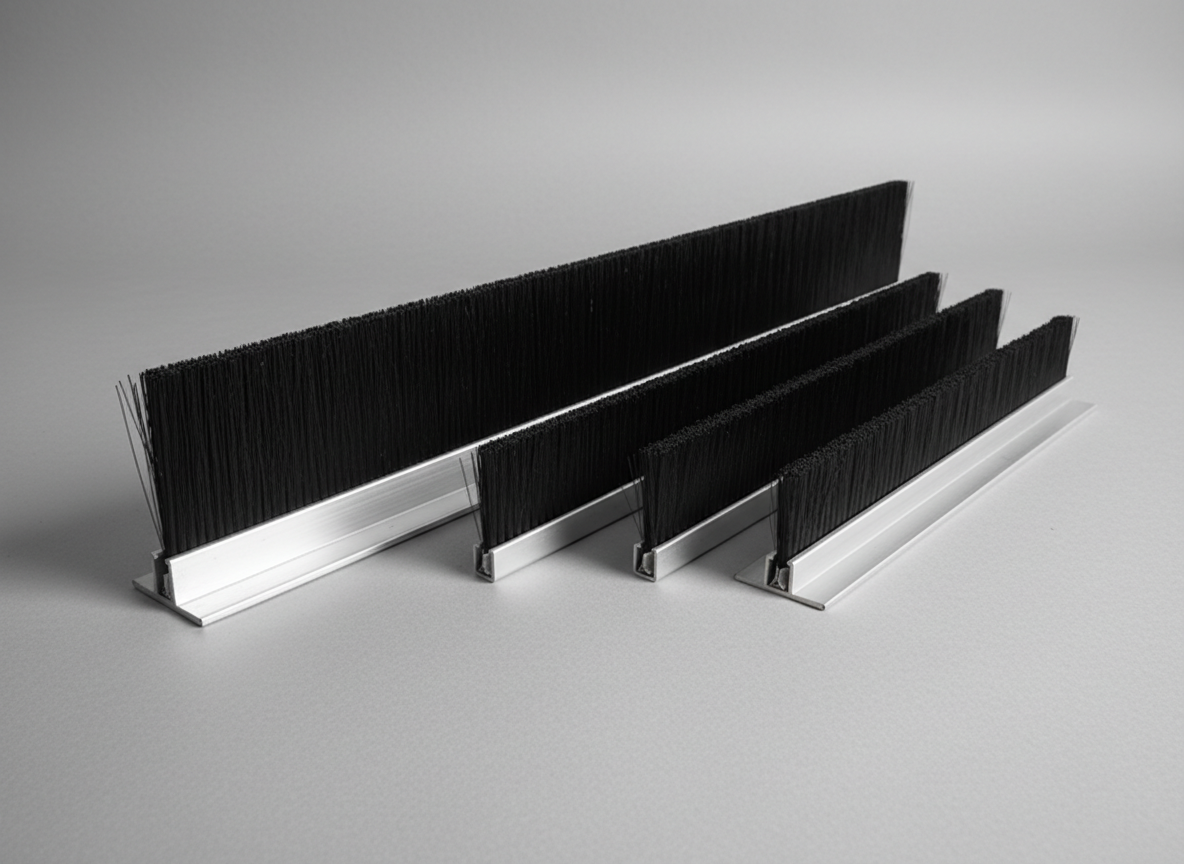

Industrial Strip Brush
A custom strip brush for sealing, dust control, wiping and product guidance in doors, enclosures, conveyors and automated equipment.

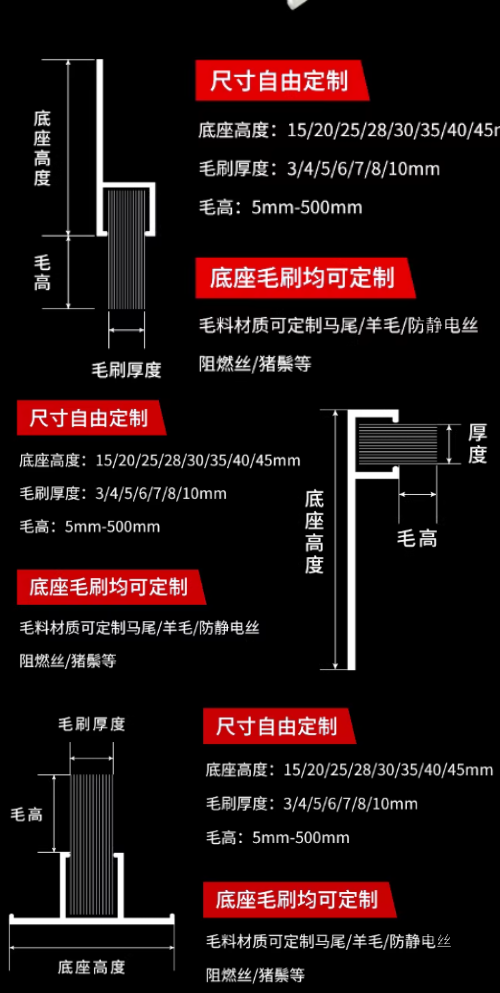

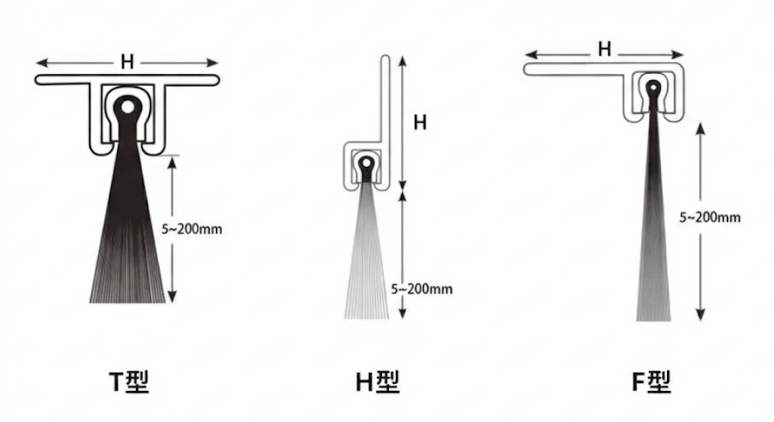

| Base profile | H, F, T, Y and drawing-based custom channels |
| Brush height | 5-200 mm |
| Overall length | Cut to size or continuous coil supply |
| Filament options | Nylon, polypropylene, steel wire, stainless wire, brass wire, horsehair |
| Base material | Galvanized steel, stainless steel, aluminum alloy or plastic |
| Typical use | Sealing, dust blocking, wiping, guiding, edge protection |
Key Features
- ? Flexible strip format for door bottoms, machine guards, conveyors and slot-mounted assemblies.
- ? Customizable base profile, filament density and trim height for retrofit or OEM projects.
- ? Supports straight lengths, curved sections and coil strip supply for long equipment runs.
Product Video
See the brush structure and working performance more clearly
Industrial Strip Brush
Strip brushes are one of the most widely used industrial brush formats because they solve several practical problems with a simple structure: sealing gaps, controlling dust, guiding products and protecting edges.
- Fits sliding doors, machine enclosures, conveyors, lift tables and packaging equipment.
- Available with metal or aluminum channels for screw fixing, slot mounting or holder systems.
- Filaments can be selected for abrasion resistance, corrosion resistance, conductivity or gentle contact.
What buyers usually confirm before ordering
For a fast quotation, send the mounting profile type, total length, brush height, filament material and the working purpose such as sealing, wiping or guidance. If you already use another supplier's strip brush, a sample or section photo is also useful.

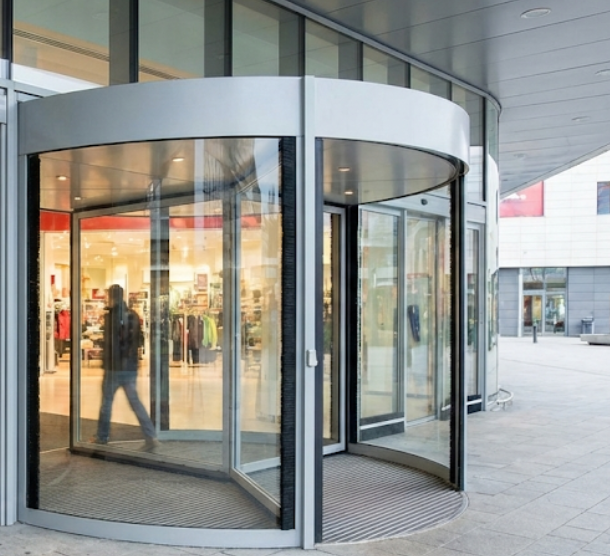

Application Example: Automatic door and equipment enclosure sealing
Challenge: Moving doors and machine guards often leave running gaps that let in dust, drafts or overspray while still needing smooth movement.
Solution: A slot-mounted strip brush creates a flexible barrier that seals the opening without creating hard friction points. By adjusting trim height and density, the brush can remain effective while keeping opening resistance low.
Buyer value: Easy replacement, low tooling cost and fast adaptation to different frame sizes.
Every strip brush is produced to drawing or confirmed dimensions. To quote quickly, send the profile type, brush height, length, mounting method and target application. If you are replacing an existing part, photos of the base profile and cross-section help a lot.
Typical sample lead time for common strip brush structures is 7 to 10 working days after dimensions are confirmed.
Send Drawing for QuotationCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
