Wear-Resistant Nylon Roller Brush
A general-purpose nylon roller brush for washing, dust removal, wiping, conveying and surface-contact operations across glass, metal, textile and equipment lines.
| Roller length | Up to machine requirement, drawing-based |
| Outer diameter | 50-600 mm typical custom range |
| Core tube | Steel, stainless steel, aluminum or PVC |
| Shaft structure | Shafted, shaftless, bearing seat or custom end machining |
| Filament material | Nylon 6, Nylon 66, antistatic nylon, PP or mixed filaments |
| Application | Cleaning, washing, conveying support, wiping, gentle polishing |
Key Features
- ? Balanced roller structure suitable for stable running on continuous production lines.
- ? Brush density, hardness and shaft ends can be adjusted to fit washing or conveying equipment.
- ? A practical choice for OEMs and replacement orders where dimensions must match existing machines.
Product Video
See the brush structure and working performance more clearly
Wear-Resistant Nylon Roller Brush
Nylon roller brushes are a standard choice when a production line needs repeatable contact, stable rotation and a brush body that can be built around machine-specific shafts and bearing positions.

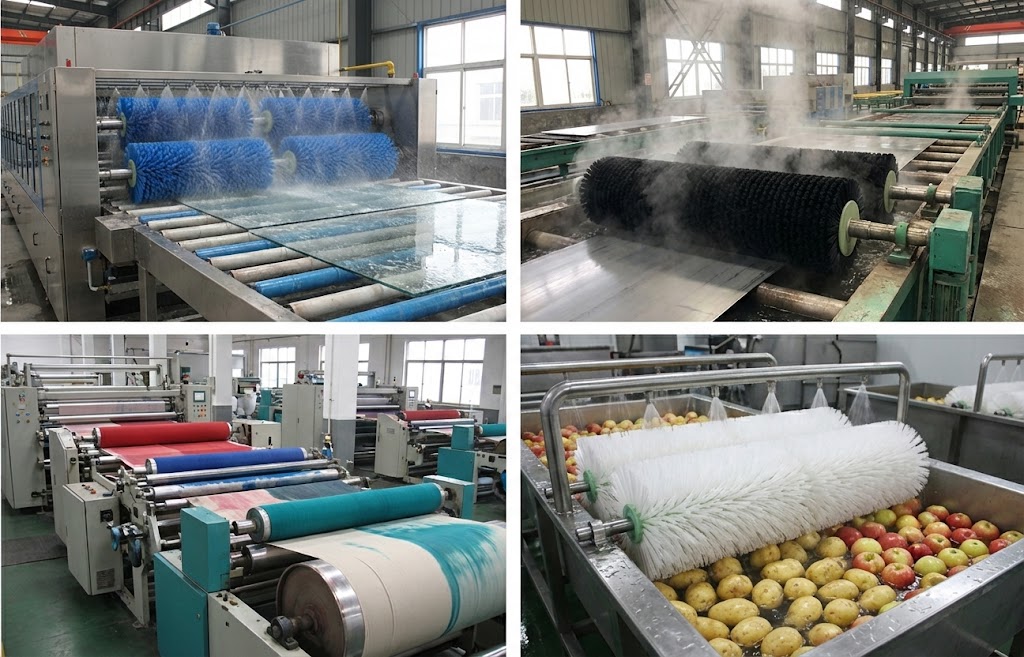

- Common in glass washing, metal cleaning, sheet transport, fruit sorting and textile finishing equipment.
- Filament diameter and density can be tuned for soft wiping or stronger scrubbing action.
- Dynamic balance and concentricity can be controlled for smoother line performance.
What helps us quote quickly
For replacement rollers, send total length, brush outer diameter, shaft diameter, bearing position, rotation speed and the material being processed. For new machines, a sketch of the support structure is usually enough for the first quotation.

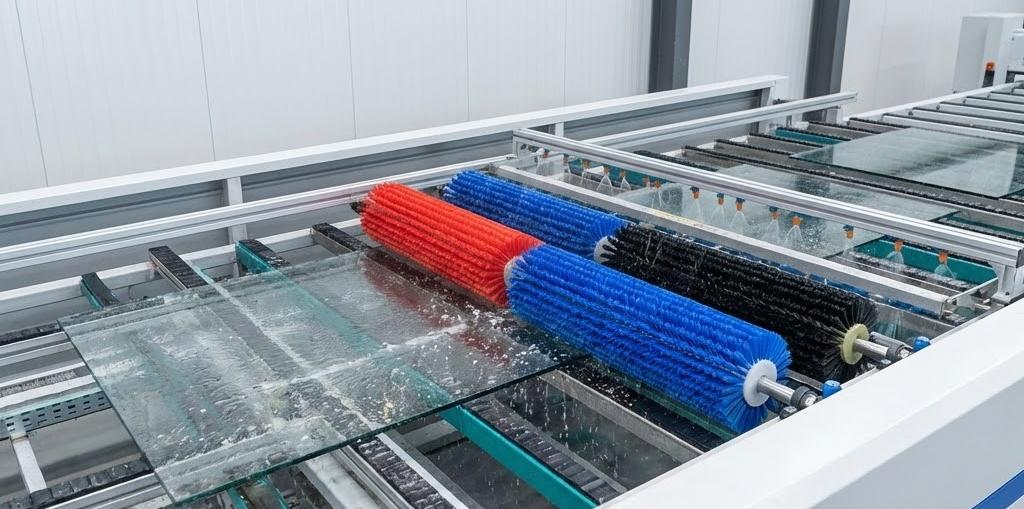

Application Example: Washing and contact rollers for continuous lines
Challenge: A buyer needed a replacement roller that could run smoothly at line speed while keeping even brush contact across the full width of glass and coated sheet materials.
Solution: We matched the shaft structure to the existing machine, adjusted filament hardness for the target surface and delivered a balanced roller assembly for direct installation.
Buyer value: Faster replacement, less vibration risk and more predictable brush life.

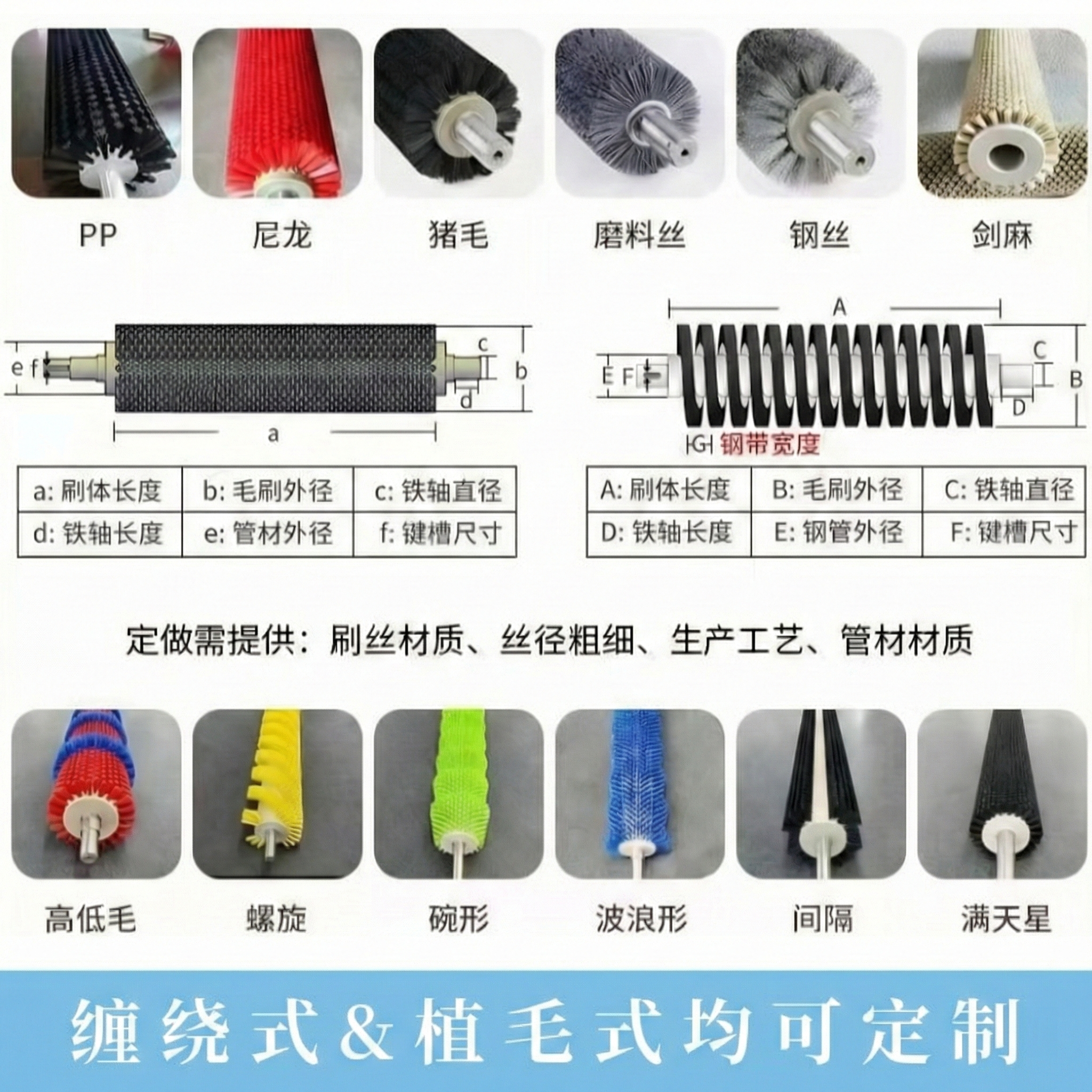

Every nylon roller brush is custom manufactured. Please send roller length, outer diameter, shaft or tube dimensions, end machining details, rotation speed and the application medium. A marked drawing or old sample helps us avoid installation mismatch.
For most replacement rollers, sample lead time is 7 to 15 working days depending on shaft complexity and material confirmation.
Request a Roller QuoteCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
