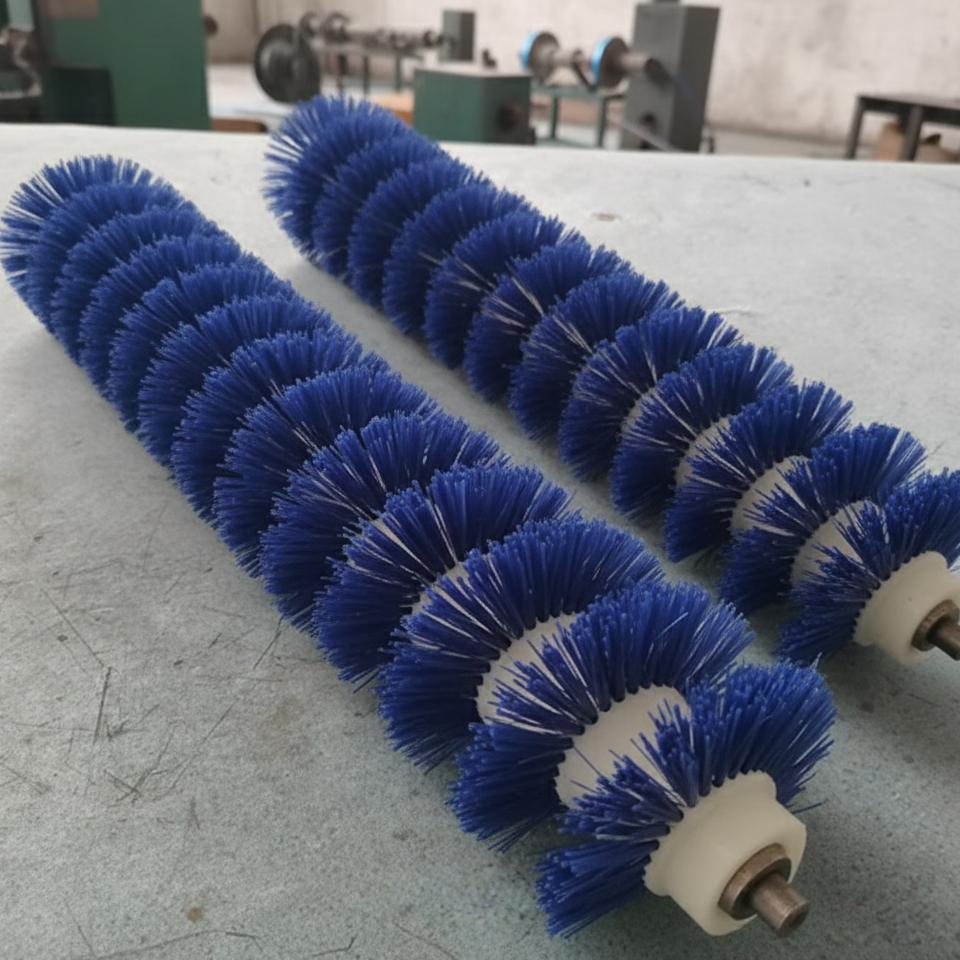

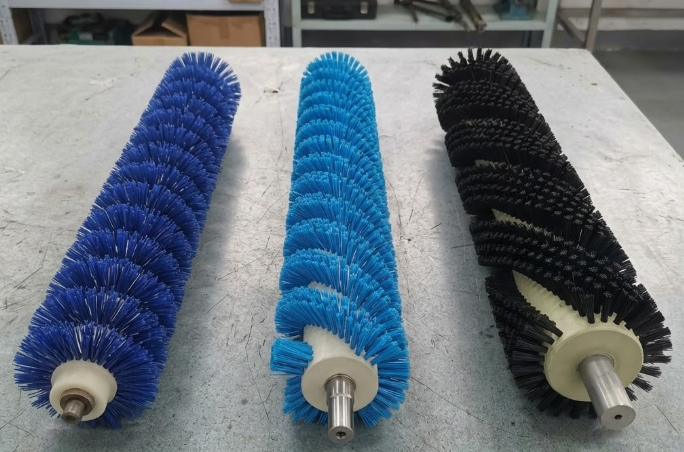

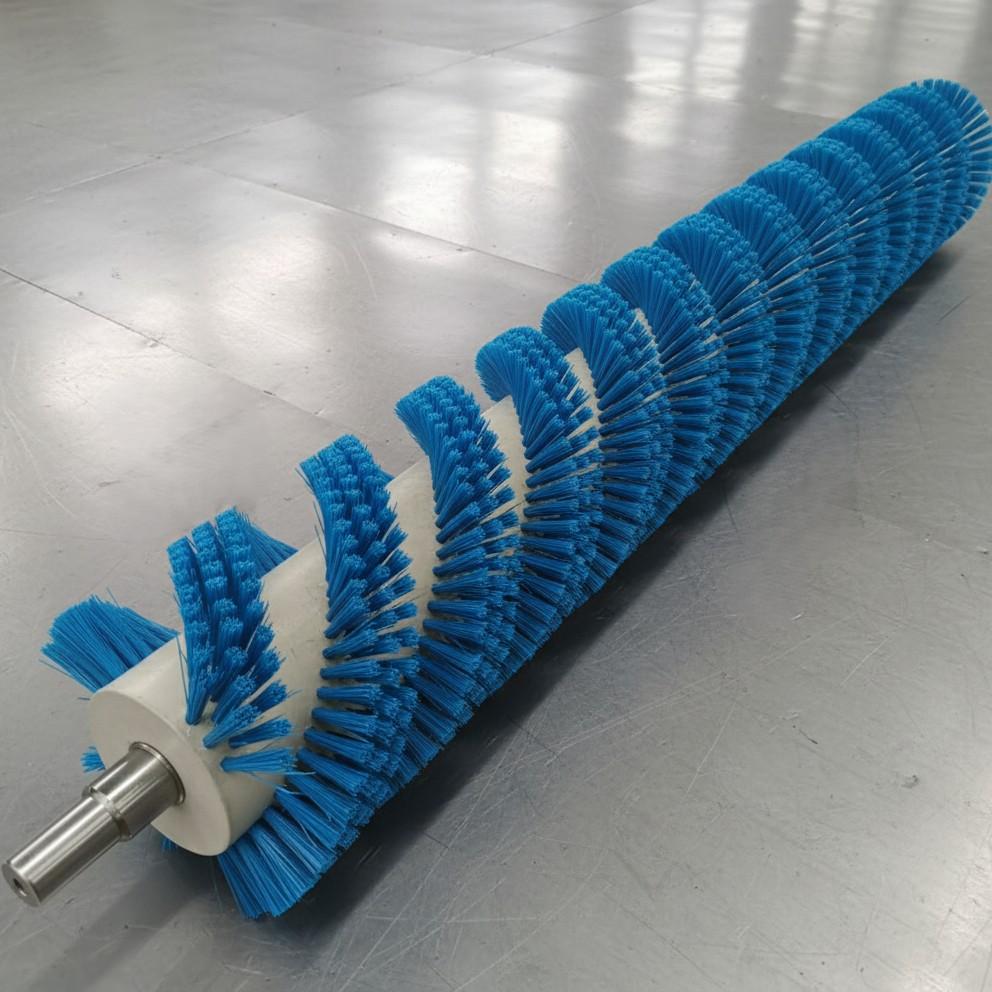

Spiral Industrial Brush Roller
A spiral-wound industrial brush roller for conveyor support, surface cleaning, guiding, wiping and process-line handling where continuous brush coverage is required across long roller lengths.
| Roller diameter | Custom according to machine design |
| Roller length | Made to order for line width |
| Filament options | Nylon, polypropylene, abrasive nylon, natural hair, mixed technical fibers |
| Spiral structure | Pitch, density and winding direction configured by application |
| Typical use | Cleaning, conveying, supporting, wiping, guiding, polishing |
Key Features
- ? Spiral winding gives continuous brush coverage with flexible density control over long rollers.
- ? Adaptable for glass, metal sheet, wood panels, packaging lines and general conveying equipment.
- ? Custom shaft machining, dynamic balance and filament selection for OEM and replacement orders.
Product Video
See the brush structure and working performance more clearly
Spiral Industrial Brush Roller
This roller format is widely used when the buyer needs continuous brush contact along a long shaft. Compared with segmented structures, spiral winding offers smoother surface coverage and more freedom to tune pitch and density for the process.
- Suitable for conveyor support, panel cleaning, wiping and material guidance applications.
- Can be designed for gentle contact or higher brushing force depending on filament and pitch.
- Available as OEM replacement or custom-built for new equipment projects.
What determines the right spiral brush design
The most important factors are roller diameter, line width, feed speed, surface sensitivity of the product and whether the brush is supporting, cleaning or transferring the material. These points decide filament type, winding pitch, trim height and balance requirements.

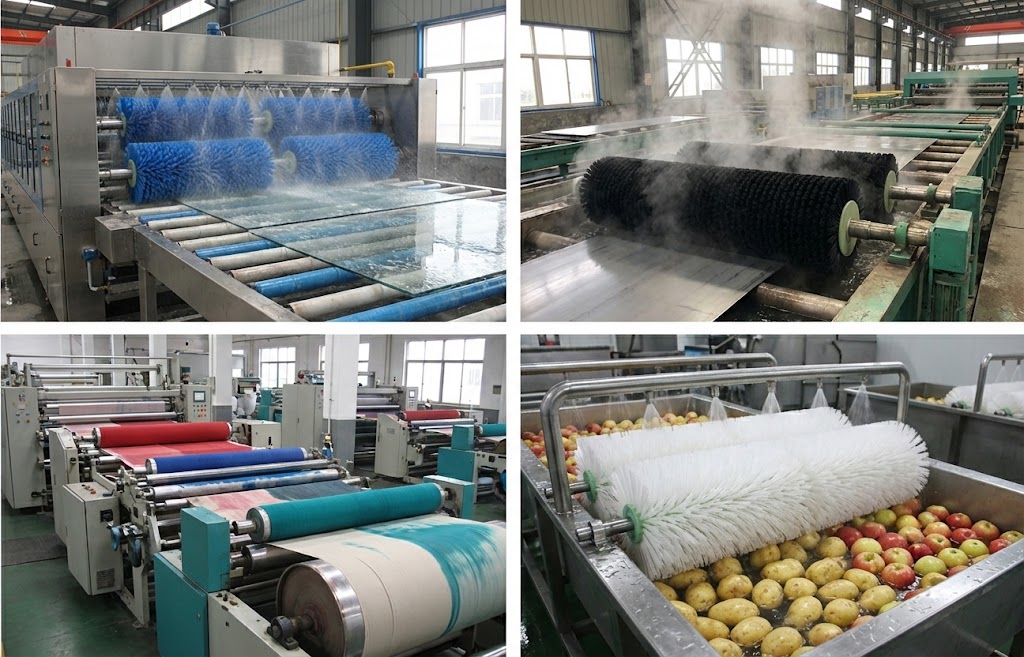

Application Example: Conveyor support and surface handling systems
Challenge: A machine builder needed a long brush roller that could support and guide panel products without marking the surface or causing unstable transport.
Solution: We proposed a spiral industrial brush roller with controlled pitch and suitable filament stiffness to create continuous support while keeping product movement smooth.
Buyer value: Easier line integration, stable product handling and simpler future replacement ordering.
Send the required roller diameter, face length, shaft drawings, trim height, rotation speed and target application. If you need the roller to avoid scratches on sensitive materials, please mention the product surface type and contact pressure.
We can support both sample-based replacement and drawing-based new production.
Request Spiral Roller QuotationCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
