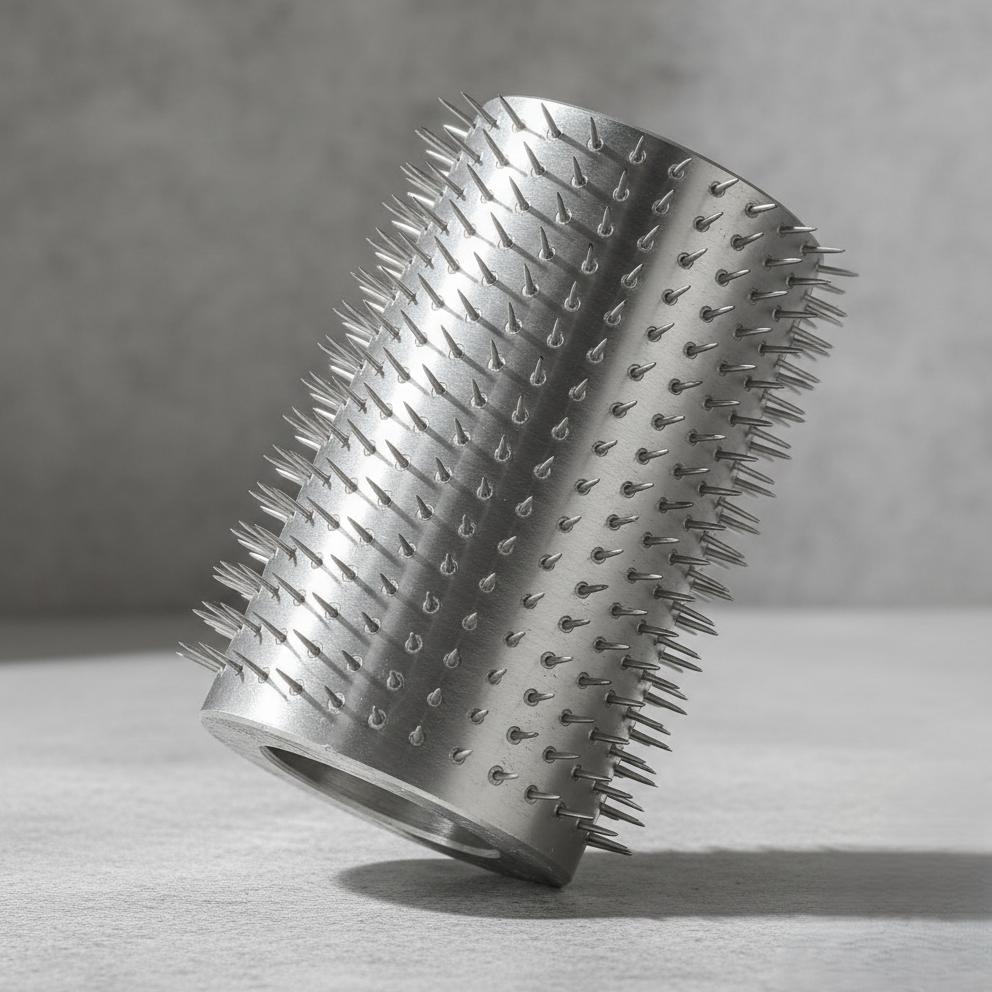

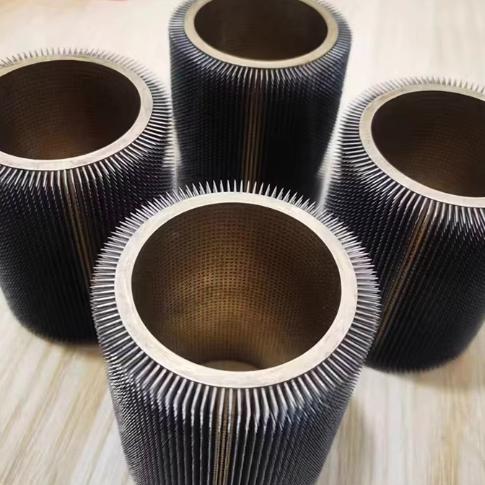

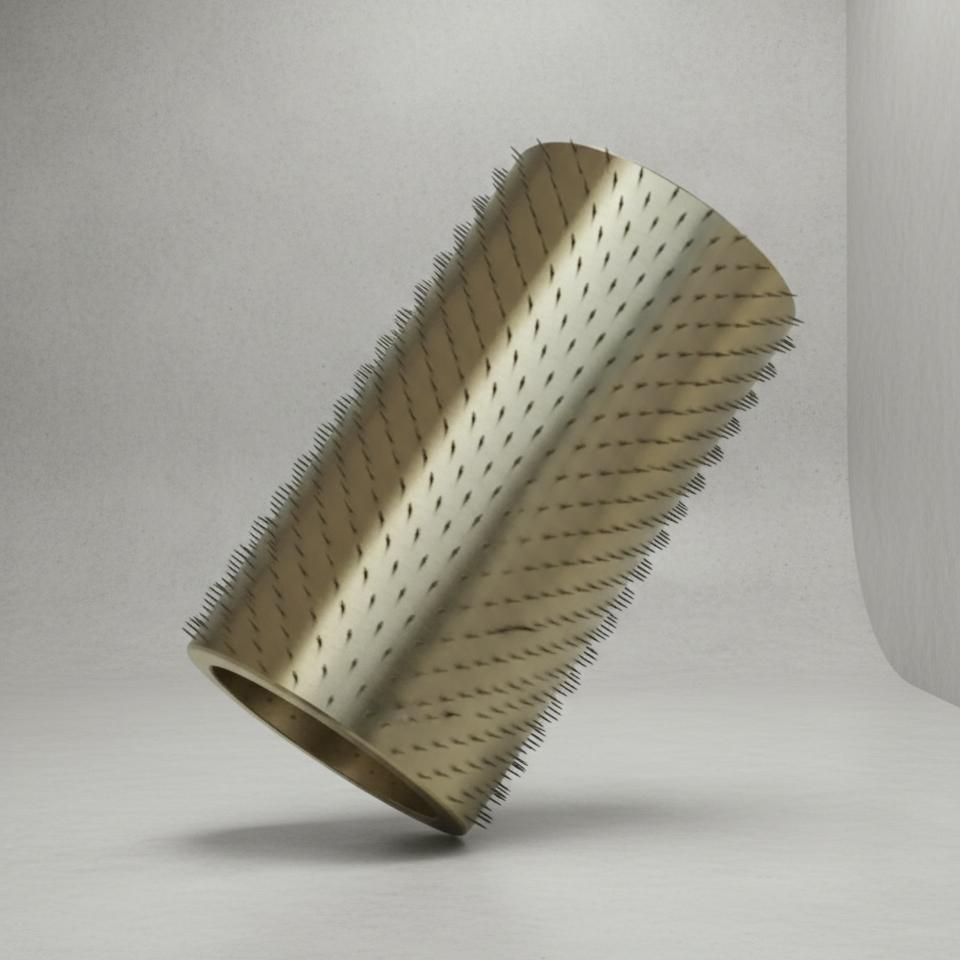

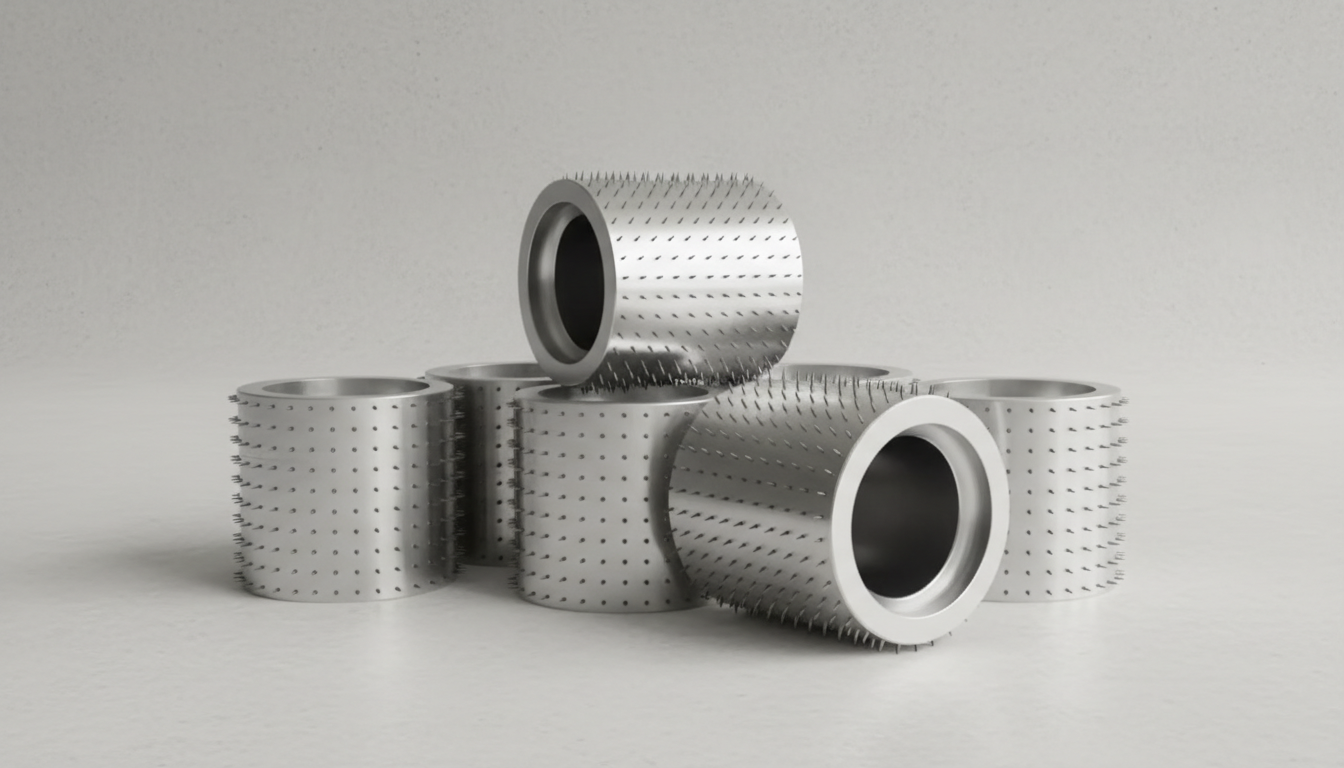

Pin Roller Brush
A custom pin roller brush for gripping, separating, guiding or lifting materials in automated lines that need point contact instead of full-surface brushing.
| Roller length | Made to order |
| Pin layout | Drawing-based spacing, angle and density |
| Core body | Metal tube, machined shaft core or custom assembly |
| Mounting | Custom shaft fit, keyway or bearing arrangement |
| Typical use | Guiding, separating, feeding, lifting, transfer assistance |
Key Features
- ? Pin-contact structure gives more targeted material control than standard roller brushes.
- ? Useful for products that need spacing, traction or guidance without full-area contact.
- ? Custom pin arrangement supports machine-specific handling and OEM development projects.
Product Video
See the brush structure and working performance more clearly
Pin Roller Brush
Pin rollers are chosen when a line needs controlled engagement with the product rather than a full brush surface. They are often used in transfer, lifting, feeding and separation stations where geometry and contact points matter.
- Suitable for material transfer systems, packaging machinery and custom handling equipment.
- Pin spacing, angle and penetration depth can be designed around the product shape.
- Can be built as a replacement part or for new OEM machinery.
How to define a custom pin roller
For accurate quotation, please send the product being handled, roller dimensions, required pin contact pattern, machine speed and whether the pins are used to lift, align, separate or drive the material.
Application Example: Precision guiding and transfer stations
Challenge: A machine builder needed targeted contact to move products through a transfer station, but normal brush rollers created too much full-surface interference.
Solution: We developed a pin roller layout matched to the product geometry so the line could guide and separate pieces more accurately.
Buyer value: Better control of product movement, easier machine integration and repeatable replacement ordering.

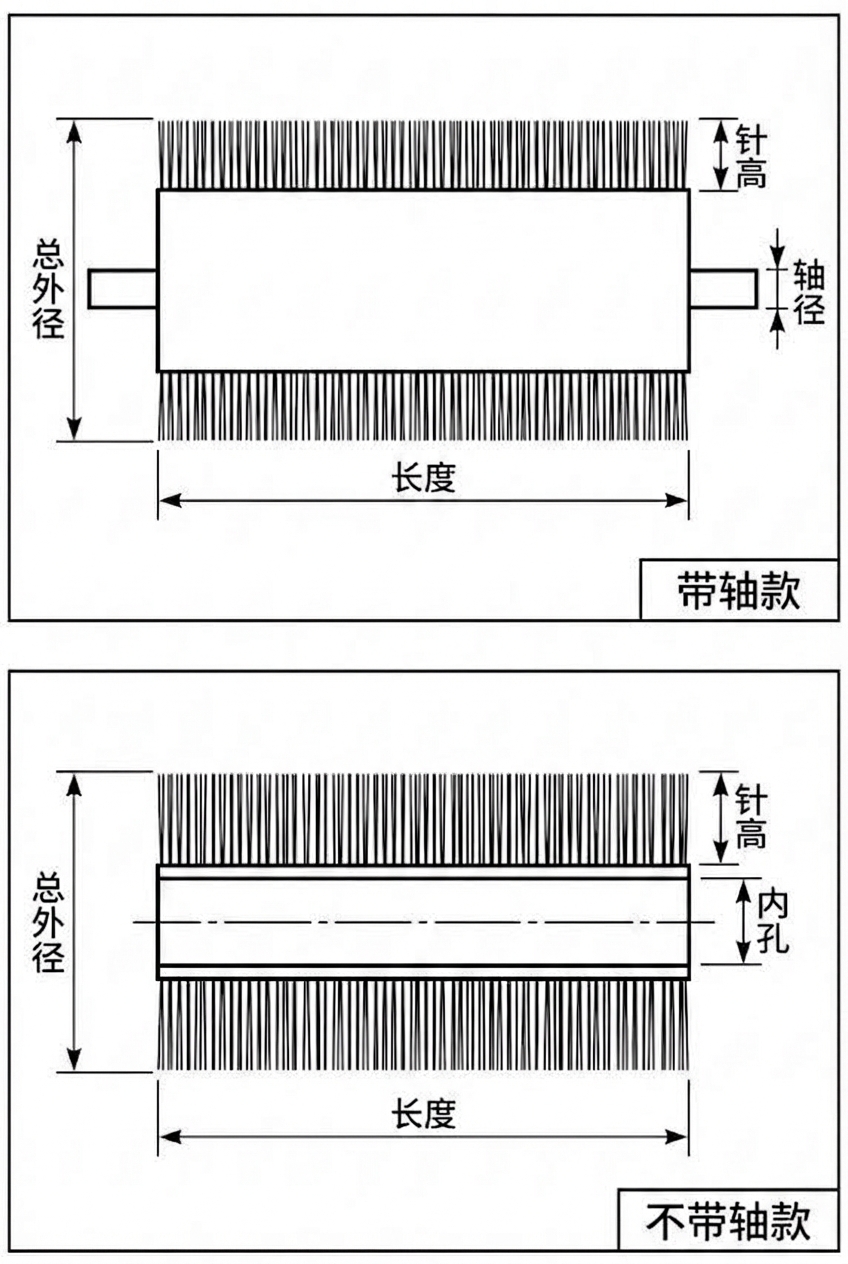

Send the roller diameter, face length, shaft drawing, pin length, pin spacing and the handled product size. If the layout is complex, a simple sketch showing the contact zone is enough for our quotation team to start.
We can support drawing confirmation before production and offer sample-based replacement development.
Send Pin Roller InquiryCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
