Pipe Cleaning Brush
A twisted-in-wire brush for internal deburring, tube cleaning, cross-hole finishing and precision passage maintenance in machined parts and fluid components.

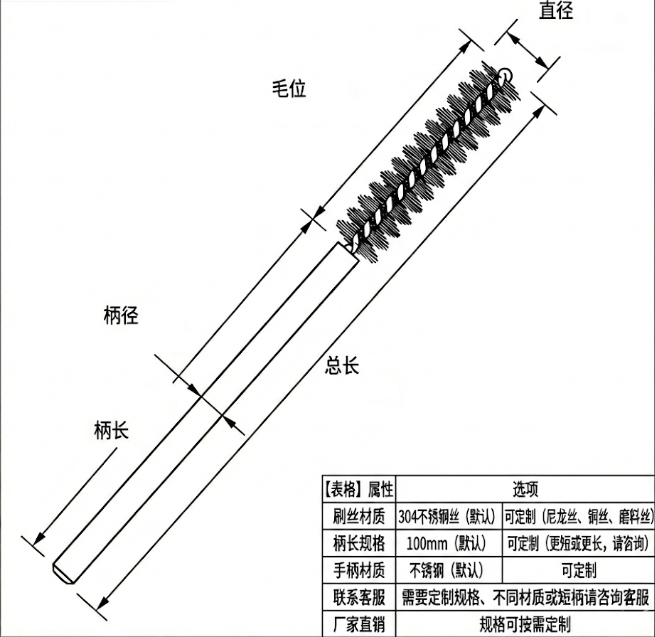

| Brush diameter | Micro size to large tube diameter, custom to passage ID |
| Working length | Configured to cleaning depth and access length |
| Stem style | Loop handle, straight stem, threaded stem or drawing-based |
| Core wire | Carbon steel, galvanized steel or stainless steel |
| Filament options | Nylon, abrasive nylon, brass wire, steel wire, stainless wire |
| Typical use | Internal deburring, residue removal, polishing, bore finishing |
Key Features
- ? Designed for internal passages where flat or roller brushes cannot reach.
- ? Available in very small diameters for medical, electronics and precision-machined parts.
- ? Flexible options for stem length, twist strength and filament aggressiveness.
Product Video
See the brush structure and working performance more clearly
Pipe Cleaning Brush
Pipe cleaning brushes are used where burrs, chips, scale or residue remain inside a hole, bore or passage after machining, cutting or processing. They are especially useful when the internal surface must be cleaned without damaging nearby edges.
- Suitable for hydraulic blocks, tubing, manifolds, precision bores and cross-hole intersections.
- Available with abrasive nylon for gentle internal deburring or wire filaments for more aggressive cleaning.
- Can be supplied for manual use, hand tools or automated insertion setups.
What buyers should provide
For accurate sizing, send the bore size, cleaning depth, required surface effect and whether the brush needs to pass through intersections or blind holes. If the part is sensitive, note the material and whether scratch control is important.

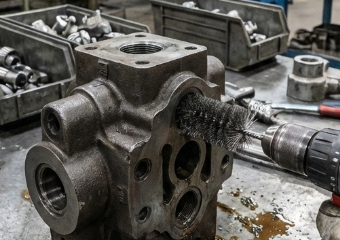

Application Example: Hydraulic blocks and machined tube passages
Challenge: Internal chips and fine burrs left after drilling or tapping can affect sealing reliability and downstream assembly.
Solution: A correctly sized twisted brush reaches the full passage depth and removes loose residue and burr edges without requiring complex secondary tooling.
Buyer value: Simple replacement cycle, lower tooling cost and better consistency for internal cleaning tasks.
For tube brush RFQs, please send the inner diameter to be cleaned, working depth, stem style, preferred filament material and whether the brush is for manual use or machine use. A part drawing or a marked section view is ideal.
Micro and precision tube brushes are usually quoted by exact diameter, stem length and filament type, so drawings help reduce trial rounds.
Request Tube Brush QuoteCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
