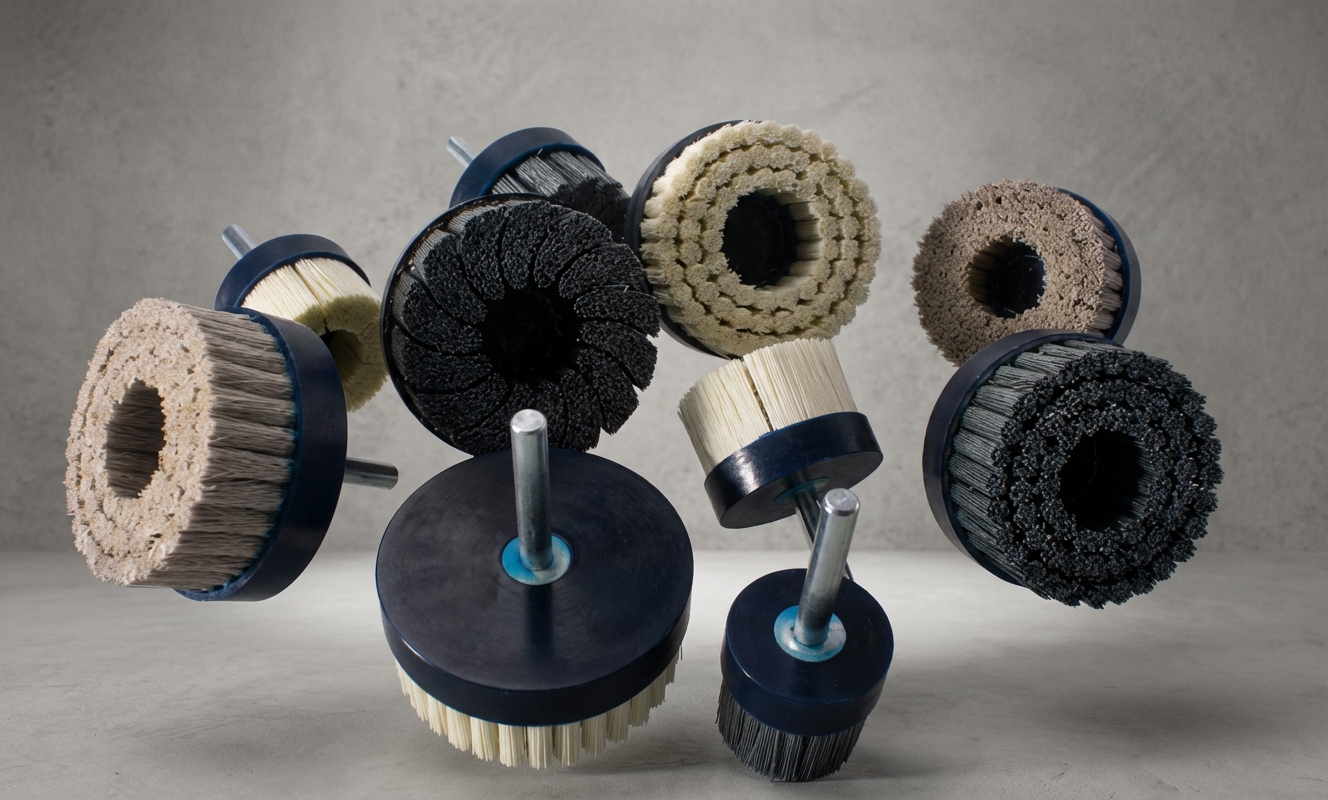

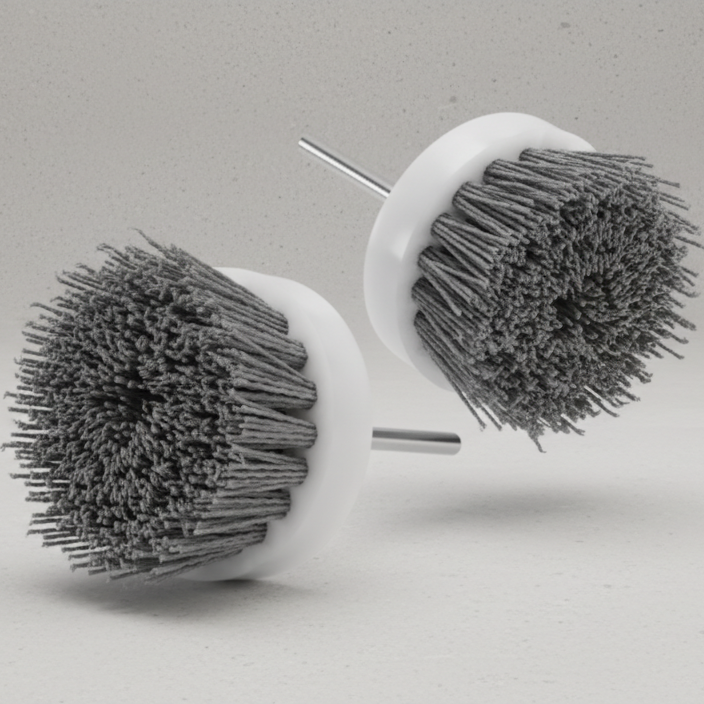

Abrasive Disc Brush
A high-cut disc brush for deburring, rust removal, oxide cleaning, satin finishing and edge rounding on metal, stone and composite surfaces.
| Brush diameter | 40-1500 mm |
| Trim length | 8-130 mm |
| Mounting bore | Drawing-based hole size and fixing pattern |
| Filament options | Abrasive nylon, polyester, steel wire, stainless wire, sisal |
| Abrasive grit | Configured to required finish and material removal |
| Typical use | Deburring, rust removal, polishing, grain finishing, cleaning |
Key Features
- ? Disc format gives stable contact for surface conditioning and edge preparation.
- ? Available for manual machines, rotary heads and automated finishing equipment.

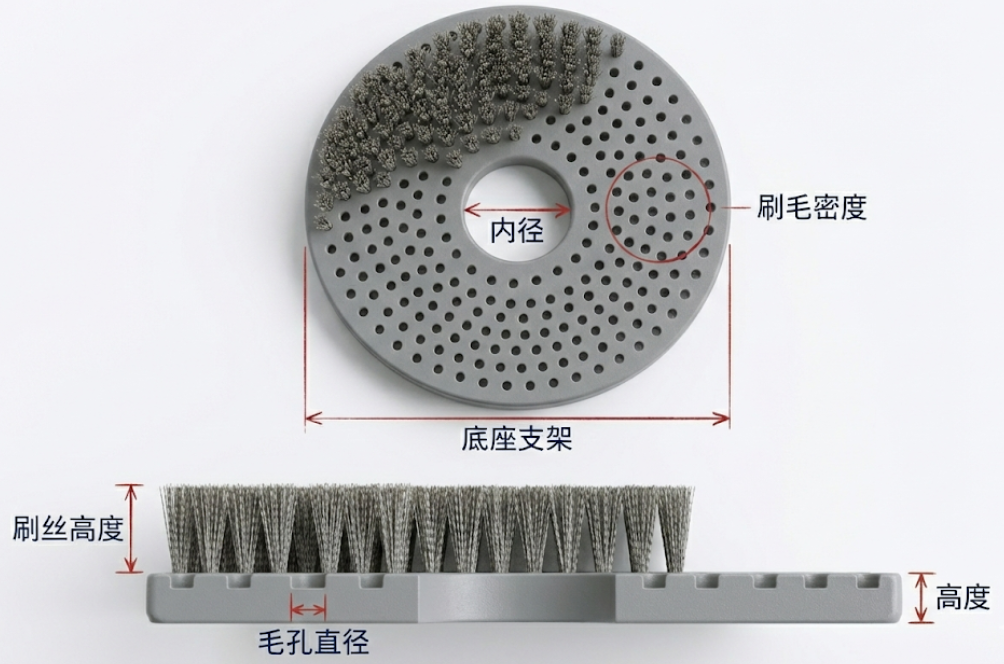

- ? Brush density, grit and mounting structure can be tuned to the workpiece and feed rate.
Product Video
See the brush structure and working performance more clearly
Abrasive Disc Brush
Disc brushes are commonly selected when the process needs concentrated cutting action and consistent brushing over a defined surface area, especially for deburring and finish correction.

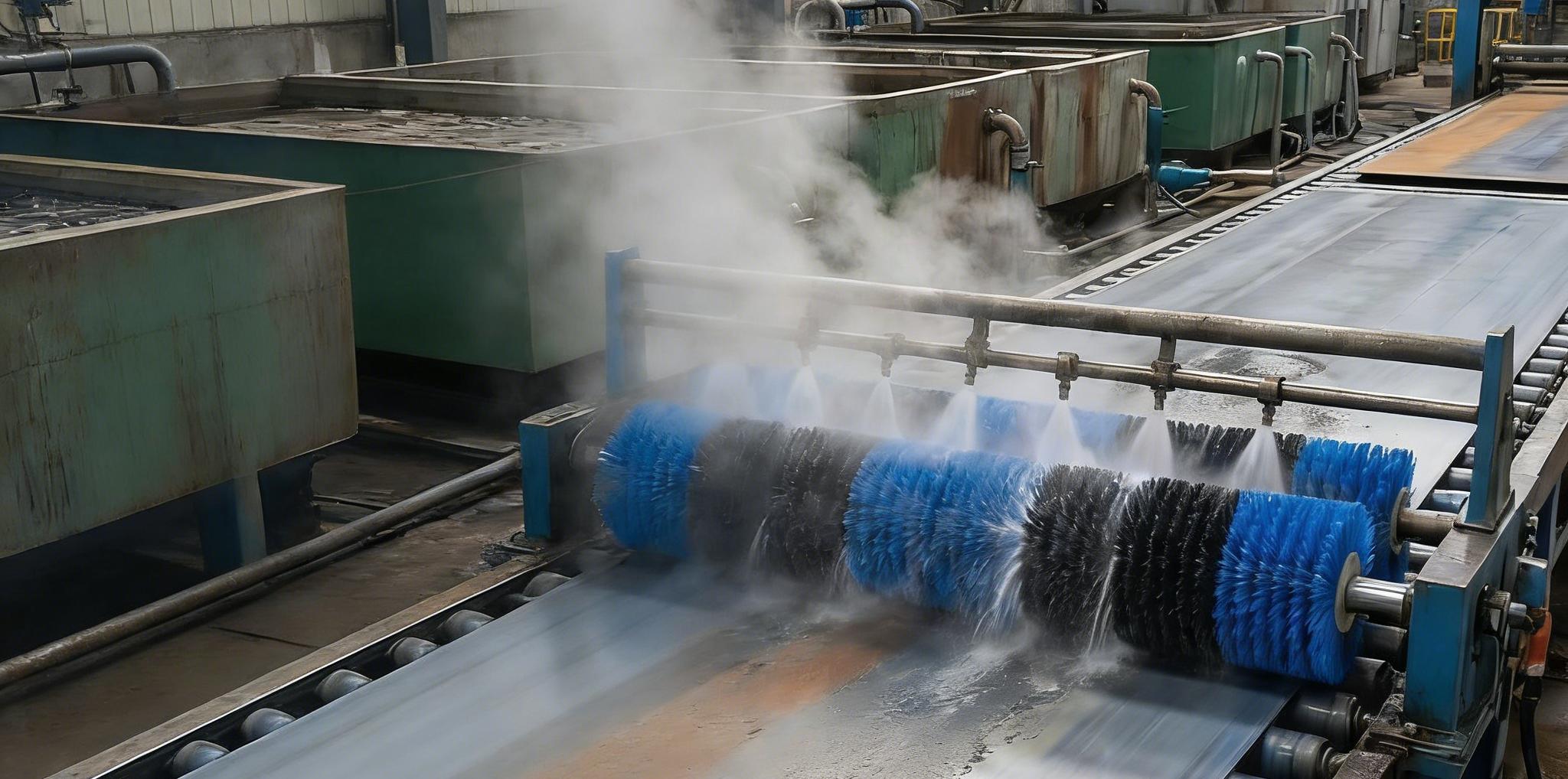

- Suitable for sheet edge finishing, weld seam cleanup, rust removal and decorative grain effects.
- Can be configured with abrasive nylon or wire depending on surface hardness and removal target.
- Available with custom mounting holes and segmented designs for machine integration.
Before we quote
Please send workpiece material, target finish, current process speed, required brush diameter and mounting details. If you already know the abrasive grit or if you are replacing a current disc brush, include that information in the RFQ.
Application Example: Metal edge deburring and satin finishing
Challenge: The buyer needed one disc brush platform that could remove edge burrs consistently without producing unstable scratch marks across stainless and carbon steel parts.
Solution: We selected the abrasive filament type according to the workpiece hardness, then adjusted trim density and disc diameter to match spindle speed and contact pressure.
Buyer value: More consistent finish, easier replacement control and better repeatability across production batches.
For disc brush quotations, please share the outer diameter, bore size, mounting pattern, target material, line speed and the finish or deburring effect you need. If possible, include the current brush drawing or a photo of the mounting side.
For new finishing applications, we can also recommend trial configurations based on your material and expected finish.
Request Disc Brush ProposalCustom Manufacturing Process
A clear workflow for custom industrial brush projects
Requirement Review
Confirm the application, dimensions and target service life
Design Proposal
Recommend materials, structure and confirmation drawings
Sampling and Validation
Produce samples and verify fit, balance and durability
Mass Production
Manufacture on schedule and support delivery planning
